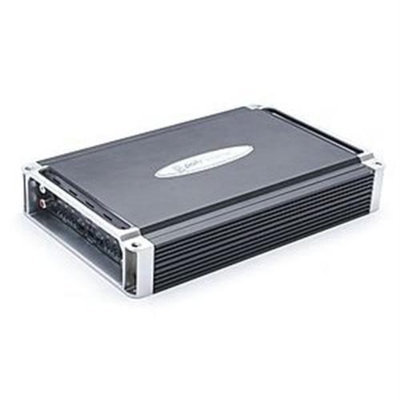

Poly-Planar ME400D 400 Watt 4 Channel Amplifier

Poly-Planar ME400D 400 Watt 4 Channel Amplifier

BY POLY-PLANAR

Description

FEATURES 4 Channel Class D Power Amp 2 ohm stable stereo outputs Bridgeable outputs Variable input level controls for each pair of channels Variable High-pass, Low-pass and All-pass crossover. Variable Bass Boost circuit Thermal and overload protection circuitry Gold-plated RCA jacks and terminals TECHNICAL SPECIFICATIONS POWER SUPPLY Power Supply Voltage: 11-16 VDC Idling Current: 0.8 A Idling Current when off: <0.001 mA AMPLIFIER Output Power (RMS) @ 14.4V / 4�: 125 W x 4 CH Output Power (RMS) @ 14.4V / 2�: 200 W x 4 CH Output Power (RMS) @ 14.4V / 4� / 3 Channel: 125 W x 2 CH + 400 W x 1 CH Output Power (RMS) @ 14.4V / 4� / 2 Channel: 400 W x 2 CH Output Power (max) @ 14.4V / 4�: 250 W x 4 CH Output Power (max) @ 14.4V / 2�: 400 W x 4 CH Output Power (max) @ 14.4V / 4� / 3 Channel: 250 W x 2 CH + 800 W x 1 CH Output Power (max) @ 14.4V / 4� / 2 Channel: 800 W x 2 CH Distortion (T.H.D): <0.03% Signal to Noise Ratio: 102dB Channel Separation: 56dB Input Sensitivity: 200mV - 6.0V Low Pass Filter / slope: 50 Hz - 5000Hz/12dB High Pass Filter / slope: 20Hz - 4000Hz/12dB Fuse Rating: 25A x 3 Dimensions ( L x W x H )in/mm: 11�/280mm x 6.7�/170mm x1.7�/45mm see more...
