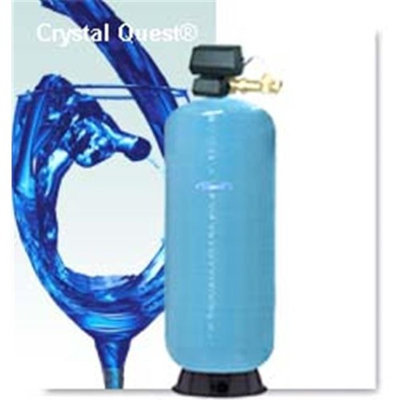

Crystal Quest CQE-CO-02062 Commercial-Industrial Multi Media Water Filter System - 10 Cu. Ft

Crystal Quest CQE-CO-02062 Commercial-Industrial Multi Media Water Filter System - 10 C...

BY CRYSTAL QUEST

Description

Multi media Filter Systems also known as depth filters or turbidity filters contains two or more types of media and a gravel under-bedding. The gravel is used as a support to keep smaller medias out of the distribution system and to stop channeling of water. Crystal Quest Commercial multimedia systems are designed for the removal of turbidity in the water caused by sand silt ferric iron oxidized manganese or sulfur. They are used in applications such as chlorination filtration systems general turbidity removal and prior to ultraviolet sterilizers or water softeners. Multi media filtration is a proven design concept; the coarse media layers in the top of the tank trap large particles and smaller particles are trapped in the finer layers of media deeper in the filtering bed. The result is a highly efficient filtering since removal takes place throughout the entire bed. Multi media filters typically remove particles 5 to 15 microns in size as opposed to a conventional single media sand filter which removes 30 micron or higher. Metered Fleck controls. Heavy duty Structural tanks Poly Glass mineral tank. All brass motor driven control valve with fully adjustable regeneration cycles. Self-adjusting backwash controller. Flow controller to limit backwash flow. Engineered for commercial and industrial use. Optional skid mounting for tank. Pipe Size: 2. Gravel: 200 lbs Mineral Tank: 24 x 72. Service Flow: 15 GPM. Peak Flow: 30 GPM. Backwash Flow: 30 GPM. Sace Required: 24 W x 24 D x 95 H. see more...
